Yanhua Mini ACDP Adds N13 563TU N63TU MSV70 MSS60 DME ISN Read/Write

Yanhua Mini ACDP released new upgrade on April 18th, 2019.

New update:
Read/write ISN from new added DME models

Read/Write N55 DME ISN
(E chassis)

Read/Write N20 DME ISN
(E chassis)

Read/Write N13 DME ISN
(E chassis)

Read/Write 563TU DME ISN
(E chassis)

Read/Write N63TU DME ISN
(E chassis)

Read MSV70 DME ISN
(E chassis)

Read MSS60 DME ISN
(E chassis)

yanhua-acdp-add-isn-model-1 yanhua-acdp-add-isn-model-2



2 Ways to Read/Write N20/N55/N13 ISN without Opening shell

yanhua-acdp-add-isn-model-3 yanhua-acdp-add-isn-model-4



Yanhua ACDP supported DME ISN models till now:

N20(MEVD1724, MEVD172P, MEVD1729), N13(MEVD1725, ), N55(MEVD172, MEVD1726, MEVD172G, MEVD172S, MEVD17, ), MSV80, MSD81, MS085,
MSD85HY, MSD87, MSV90, MEVD1728(s63), MEV1722, MED172, MEVD1727, DDE701,DC17C50, BMSX…
B38
N62_TUE2/ MEV9N46/MEV9N46L
N13/563TU/N63TU/MSV70/MSS60 (New Update)

Lonsdor K518 adds Renault Escape, Megane IV, Scenic IV 2015 up

Lonsdor K518ISE/K518S new upgrade adding 2015 up Renault Escape, Megane IV, Scenic IV immobilizer key programming.

(17/04/2019)

Immobilizer
Escape (2015-) Program smart key and mechanical key
Megane 4 (2015-) Program smart key and mechanical key
Scenic 4 (2015-) Program smart key and mechanical key

Software Optimization:
Scenic (-2008) Program mechanical key

lonsdor-k518-update-renault

How to Solve K518 program Renault primastar 2004 key ok but not start van

Lonsdor K518ISE:Renault primastar 2004 – program key all went OK, but after finished the key would not start van, or work with central locking.

2x keys tested, both from AUTOWAVE company. keys were LOCKED after programming.

Programmed under Renault trafic first, then Renault master second key used.

Maybe it was faulty keys, I don’t know, autowave keys are usually good.

Analysis:

ISK (Crypto low, Crypto high) = is the 6 byte in HITAG2 which close the pcf (like a password) if you have cloning stuff you can see the ISK after key decoding, like Handy or something or some tools are informing you like Renault ECu tool. Whatever, you got the ISK
Take your transponder programmer and enter the isk. Put the locked key to the programmer, it depends the prommer there is a different ways but you can always unlock Renault hitag2 keys or cards(7946, 7947) if you have the ISK.
And yes even the EFFI able to do it, my miraclone have a dedicated button..etc.
When I programming Renault I always writing down the ISK. If the key is broken/defected/something I can start over after unlock.

In addition, the only key you can’t unlock if you know ISK is the new Renault card for Meganne. 2. If order by official dealer card come locked with Vin you order and can’t unlock with any way.

Lonsdor K518ise key programmer add non-smart keys to Renault Clio 3

Confirmed! Lonsdor K518ISE Key Programmer is able to add non-smart keys to Renault Clio 3

In Lonsdor K518ise:

Immobilizer – Renault – select from vehicle – Clio – Clio 3

lonsdor-k518ise-renault-clio-1

Add non-smart keys

lonsdor-k518ise-renault-clio-2

Downloading application…

lonsdor-k518ise-renault-clio-3

Lonsdor starts programming new keys…

Turn off the ignition switch and remove the key

lonsdor-k518ise-renault-clio-4

Current key: 2

lonsdor-k518ise-renault-clio-5 lonsdor-k518ise-renault-clio-6
Insert the key and switch ignition on

lonsdor-k518ise-renault-clio-7

Switch ignition off, remove the key

lonsdor-k518ise-renault-clio-8

Insert the key and switch ignition on

lonsdor-k518ise-renault-clio-9

Switch ignition off, remove the key

lonsdor-k518ise-renault-clio-10

Continue to program the next key

lonsdor-k518ise-renault-clio-11

Key learn complete

lonsdor-k518ise-renault-clio-12

Test both keys

lonsdor-k518ise-renault-clio-13 lonsdor-k518ise-renault-clio-14

Lonsdor K518 BMW Mini Downgrade Fail Error Solution

Problem: Lonsdor K518S yesterday failed to program mini r56 2012 cas3++ istap version. After downgrade it with the properly menu. Went to program key and lonsdor keep saying cas need update.

Fail fail fail. And cas now is faulty and car doesn’t s tart. Tried to update cas with original BMW istap and at the end gave error. This never happened to me before. Last time I had this problem just updated cas with istap and cas became alive. How to fix now? I know how to fix it, problem is LONSDOR IS NOT DOING UPDATES PROPERLY.

Solution: Mini downgrade is unstable,need to dismantle cas and read data before updating cas Find a car exactly the same as this one, and rewrite the eeprom data. then the car will be as normal. (you need to dismantle cas and read data before updating cas for cas3+/3++

Peugeot 407 2007 read pin & program keys by Lonsdor K518ISE

Possible to program remotes (Peugeot 407 2007) using Lonsdor?

Yep! it’s tested. Lonsdor K518ISE is able to read pin codes and program new keys and remotes to 407.

The test: (done by engineers working for cardiagtool.co.uk)

step 1: read pin

step 2: add new keys

step 3: program remotes

in detail…

Step 1: Read Pin Code

Select- Peugeot-1 Select- Peugeot-2 Select- Peugeot-3
During the function operation, the windshield wiper brushes and the headlight illuminates which is normal
To stop wiper brush, check Help and pull out the corresponding fuse.

Turn ignition switch to ON position

Select- Peugeot-4

Lonsdor is gonnna to read vehicle information

Select- Peugeot-5

Reading data and verifying pin

Read pin code success

Step 2: Program a new key

Select Peugeot->Select from vehicle->407->Immobilizer->Program key

Select- Peugeot-6 Select- Peugeot-7

Turn on ignition

Select- Peugeot-8

require to enter pin to access

Select- Peugeot-9

Turn ignition off and then turn on within 15 seconds

Select- Peugeot-10

Program complete.

Press YES to program next key or Cancel to quit.

Step 3: Program the remote control

Select- Peugeot-12

Step to reprogram remote control:
1.Switch ignition off and remove key
2. Insert a key and switch ignition on
3. Press any button of the remote key for 10 seconds and release within 20 seconds.
4. Switch ignition off and remove key
5. For more keys, repeat step 2-4

Select- Peugeot-13

Job’s done!

Result: success!

CG PRO Reset Odometer on a BMW X1 CAS3 2010 M35080

Model: BMW X1

Year: 2010

Instrument type: 35080

Immobilizer: CAS3-0L15Y

Device: CG PRO 9S12 programmer

Purpose: odometer correction

cgpro-bmw-x1-change-mileage-1 cgpro-bmw-x1-change-mileage-2

Original odometer: 191,245 km

Step 1: Remove Dash

Turn off ignition.  Remove and disassemble dashboard instrument
cgpro-bmw-x1-change-mileage-3 cgpro-bmw-x1-change-mileage-4 cgpro-bmw-x1-change-mileage-5 cgpro-bmw-x1-change-mileage-6 cgpro-bmw-x1-change-mileage-7

Locate chip m35080DOWQ

cgpro-bmw-x1-change-mileage-8 cgpro-bmw-x1-change-mileage-9

Step 2: Remove IMMO Box

Remove immo box CAS3-0L15Y

cgpro-bmw-x1-change-mileage-10 cgpro-bmw-x1-change-mileage-11 cgpro-bmw-x1-change-mileage-12 cgpro-bmw-x1-change-mileage-13 cgpro-bmw-x1-change-mileage-14 cgpro-bmw-x1-change-mileage-15

Step 3: Change mileage in dash

Open CGPro software

Solder 080DOWQ chip into CGPRO M35080/35160 adapter

cgpro-bmw-x1-change-mileage-16

Select Model->Adjust mileage->BMW->35080 V1 (080DQ)

cgpro-bmw-x1-change-mileage-17

Choose Adjust mileage function icon and enter mileage you desired

Step 4: Correct odometer in Immobilizer

Connect CAS3 0L15Y eeprom IC chip with CG-Pro DB25 connector

cgpro-bmw-x1-change-mileage-18 cgpro-bmw-x1-change-mileage-19

In CG Pro software, select Chip->Adjust mileage->BMW->CAS3 0L15Y

Manully enter new mileage you desired

Press YES to confirm

cgpro-bmw-x1-change-mileage-20

Both dash and immo mileage reset successfully. Reinstall dashboard and immo box to vehicle.

cgpro-bmw-x1-change-mileage-21

Lonsdor K518ISE programs 2005 Ford Focus key in two minutes

A quick demonstration of Lonsdor K518ISE programming key for 2005 Ford Focus in two minutes. And for more auto key programming,check hereautomotive key programming cases.
lonsdor-k518ise-key-programming-on-a-ford-focus-1
This is the Ford with this key the HP 100 101, sorry not the Tibbe key.
lonsdor-k518ise-key-programming-on-a-ford-focus-2
lonsdor-k518ise-key-programming-on-a-ford-focus-3
It’s very simple to use Car Key Programmer Lonsdor K518ISE.
You see there is a range of other things but we’re just doing this key today.
lonsdor-k518ise-key-programming-on-a-ford-focus-4
So just show you the original key is this one and when you put that in the ignition, turn the ignition on and this light here that’s currently, flashing will go solid and then go out that shows that the system’s working.
lonsdor-k518ise-key-programming-on-a-ford-focus-5
lonsdor-k518ise-key-programming-on-a-ford-focus-6
The new key is this one, it’s been cut ready, switch the ignition on and you see that light goes just flash basically, so it’s not programmed yet.
lonsdor-k518ise-key-programming-on-a-ford-focus-7
lonsdor-k518ise-key-programming-on-a-ford-focus-8
So, go to “Immobilizer“.
lonsdor-k518ise-key-programming-on-a-ford-focus-9
There is a nice search function at the right corner of the machine.
Type F and choose “Ford”, then “China”.
Yes, it does say China, but I’ve tested it quite a few times there’s name of Europe, South America, and anything else, it’s just China here, but it does work under that, so we are gonna go for China.
lonsdor-k518ise-key-programming-on-a-ford-focus-10 lonsdor-k518ise-key-programming-on-a-ford-focus-11 lonsdor-k518ise-key-programming-on-a-ford-focus-12 lonsdor-k518ise-key-programming-on-a-ford-focus-13 lonsdor-k518ise-key-programming-on-a-ford-focus-14
We will see that years the classic focus’s, tap “Type 2”, then “Immobilizer”.
Tap “Add key”, then get message “Downloading application”.
lonsdor-k518ise-key-programming-on-a-ford-focus-15 lonsdor-k518ise-key-programming-on-a-ford-focus-16 lonsdor-k518ise-key-programming-on-a-ford-focus-17
Read message ” Connect device (Lonsdor K518) OBD test cable with the vehicle OBD port, switch ignition one.”, tap “OK”.
lonsdor-k518ise-key-programming-on-a-ford-focus-18 lonsdor-k518ise-key-programming-on-a-ford-focus-19
Please insert the new key to be programmed. Note: It needs two right keys to start vehicle.
So we are in a certain new key to be programmed which is this new one here, so press “OK”.
lonsdor-k518ise-key-programming-on-a-ford-focus-20 lonsdor-k518ise-key-programming-on-a-ford-focus-21
Identified number of programmed keys in car:2, select “OK”.
lonsdor-k518ise-key-programming-on-a-ford-focus-22
Programming, please wait…
lonsdor-k518ise-key-programming-on-a-ford-focus-23
Programming complete, successfully programmed key count (2).
lonsdor-k518ise-key-programming-on-a-ford-focus-24
So I’m going to test out because that should have jumped up to free rarely.
Just ignition on, insert back to see if the light goes solid and goes out.
So that’s goes solid and goes out, the key is programmed.
lonsdor-k518ise-key-programming-on-a-ford-focus-25

lonsdor-k518ise-key-programming-on-a-ford-focus-26

And going to check another one, insert into the ignition and to see if the light goes solid and goes out, then the key is programmed successfully.
So they both work. So when it says keys programmed to it must have meant the new key count will be too, so there must have just been just this one key programmed at the time and the other key is gonna be this one the new one. To me that should say free, but it works, the both start the car. So we’re gonna do is pop the key in just test it turn the ignition on, might go solid and goes out, means it’s gonna work it’s a neutral, start the car.
So Lonsdor K518 programmer takes literally less than two minutes to program the key.
lonsdor-k518ise-key-programming-on-a-ford-focus-27 lonsdor-k518ise-key-programming-on-a-ford-focus-28 lonsdor-k518ise-key-programming-on-a-ford-focus-29
CnAutotool.com Official Blog All rights reserved Lonsdor K518ISE programs 2005 Ford Focus key in two minutes

(Solved) Lonsdor K518ise cannot read PIN code from Grand Cherokee 2014

Used to read pin codes for 2014 Jeep Grand Cherokee using Lonsdor K518ISE.

But now i cannot read the pin.

this is the version able to read pin from Grand Cherokee

l(Solved) Lonsdor K518ise cannot read PIN code from Grand Cherokee 2014 -1

but now it cannot…

forced to update sw

(Solved) Lonsdor K518ise cannot read PIN code from Grand Cherokee 2014 -2

(Solved) Lonsdor K518ise cannot read PIN code from Grand Cherokee 2014 -3

(Solved) Lonsdor K518ise cannot read PIN code from Grand Cherokee 2014 -4

nothing changed

the machine device info (id, sn)

(Solved) Lonsdor K518ise cannot read PIN code from Grand Cherokee 2014 -4 (Solved) Lonsdor K518ise cannot read PIN code from Grand Cherokee 2014 -5 (Solved) Lonsdor K518ise cannot read PIN code from Grand Cherokee 2014 -6

i check alk immo0

nothing as smart 453

immo4 immo5 all
(Solved) Lonsdor K518ise cannot read PIN code from Grand Cherokee 2014 -6

go to the trial apply in the main interface

Trial apply it’s only 90 days

so, now, everything is clear.

In Lonsdor K518S, menus are divided into two parts:

free menus and subscribed menus.

Free menus are free for lifetime.
Subscribed menus can be used for free for 90 days.

You need to pay for them after the trial period. After the trial period, subscribed menus will not work properly if you don’t pay. And the menus will disappear after updating the device.
A. 365 days is a period and the price is USD600 per period. One year period starts from the day of the trial period finished.
B. Purchase menus with a dealer. You can use the menus normally and permanently after payment.
C. Menus which you purchase includes subscribed menus that have been released and that will have been released in one year period.
D. Subscribed menus beyond one year period requires extra payment.

after 90 days’ trial period, click check for updates in one key update, you can use subscribed menus for an extra 90-day period



How to Program BMW CAS4+ All Key Lost by CGDI BMW

How to Program BMW CAS4+ All Key Lost by CGDI BMW

This article I want to show you how to program new keys for BMW CAS4+ all key lost by CGDI BMW Programmer.Hope it helps!

Devices You Need?

CGDI BMW Programmer

CGDI Pro 9S12

CG-100 Prog

Procedures:

Step 1:Read CAS4+ Immobilizer Data

Remove CAS4+ module from vehicle

How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-1-1

Disassemble cover and take out PCB



Run CG Pro software,and follow the software wire connection diagram to build connection between CG Pro 9S12 and CAS4+ module

How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMWHow-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-3
How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMWHow-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-4
How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMWHow-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-5

Operate CG Pro software to read out and decrypt immo data,then save the data on your laptop

Note:Don’t forget to make backup before operation.

Step 2:CG-100 read ECU data

Run CG-100 software,and select “ECU”

How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMWHow-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-6

Select “BMW E series”à” MEVD1724(N20)”

How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMWHow-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-7

Then follow the software wire diagram to connect CG-100 to MEVD1724(N20) ECU

How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMWHow-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-8-

Click “Read EEPROM”

How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMWHow-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-9

After reading ECU data successfully,save the ECU data file on your laptop.

How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMWHow-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-10

CG-100 will show ISN and VIN

How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMWHow-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-11

Note:CG-100 full version support this function.

Step 3:CGDI BMW Program Keys

Connect CGDI BMW to laptop and run CGDI BMW software and select “CAS4 Key Match”

How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMWHow-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-12

Select “Load CAS Data”

How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMWHow-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-13

Note select the immo data you save on step 1 to load

How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMWHow-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-14

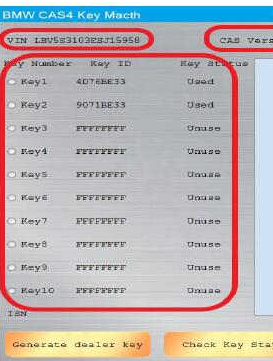

Then CGDI BMW software will show relevant information

How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMWHow-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-15

Select the key position that need to be configured,then click “Generate dealer key”,and the select the way to input “ISN” code,here select “With the engine data,the next step is to load the engine data”

How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMWHow-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-16

Now load the ISN file you saved in step 2

How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMWHow-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-17

Input a blank key into CGDI BMW slot,and click “OK” to start programming

How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMWHow-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-20 porsche-piwis-3-download-18

After programming successfully,it will prompt you new key programming successfully.

How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMWHow-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-19

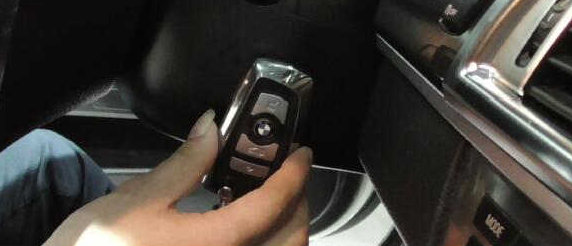

To end by test this new key on your BMW.

How-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMWHow-to-Program-BMW-CAS4+-All-Key-Lost-by-CGDI-BMW-20

UOBDII Official Blog All rights reserved How to Program BMW CAS4+ All Key Lost by CGDI BMW
