KTAG FW 7.020 vs. KTAG 7.003 vs. KTAG 6.070: Which new ECU?

June 30, 2017 Eva Professional Diagnostic Tools 0

This blog will totally make you clear:

What’s the difference KTAG FW 7.020 vs. KTAG 7.003 vs. KTAG 6.070? Which ECU types are newly supported?

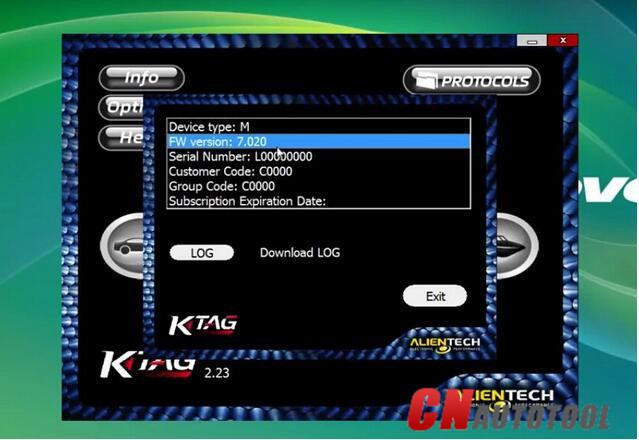

Check below KTAG FW 7.020 Ksuite V2.23 screenshots!

http://www.forobd2tool.com/wp-content/uploads/2017/06/30/19-1.jpg

In general, KTAG Firmware 7.020 add more than 100 ECU protocols newly supported.

Some screenshots of KTAG FW 7.020 Ksuite V2.23 new ECU protocols:

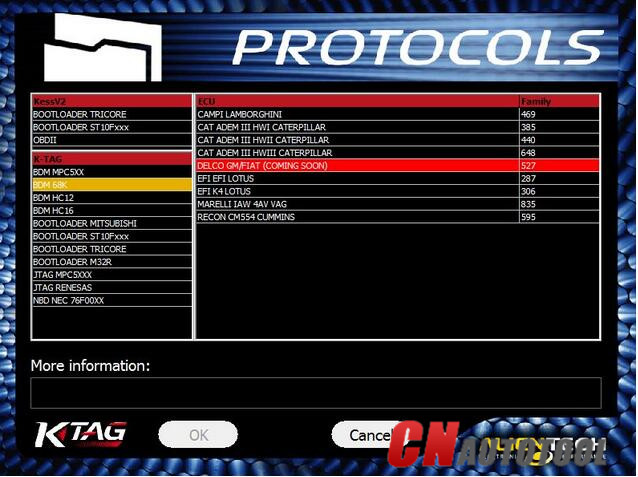

BDM 68K (CAT ADEM III, etc)

http://www.forobd2tool.com/wp-content/uploads/2017/06/30/19-2.jpg

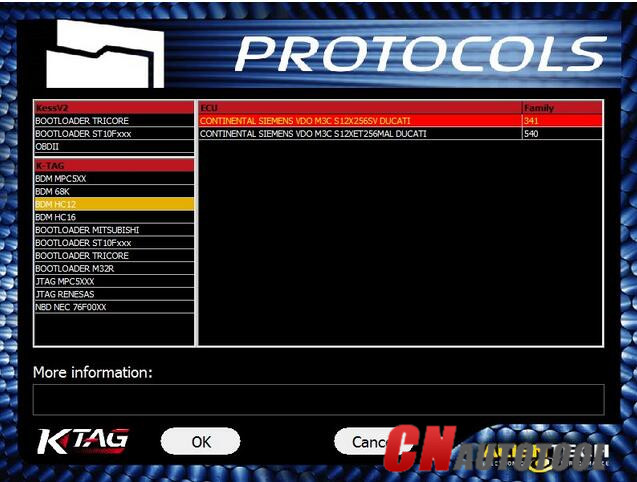

BDM HC12 (Continental Siemens VDO, etc)

http://www.forobd2tool.com/wp-content/uploads/2017/06/30/19-3.jpg

BDM HC16 (DENSO 21175, etc)

http://www.forobd2tool.com/wp-content/uploads/2017/06/30/19-4.jpg

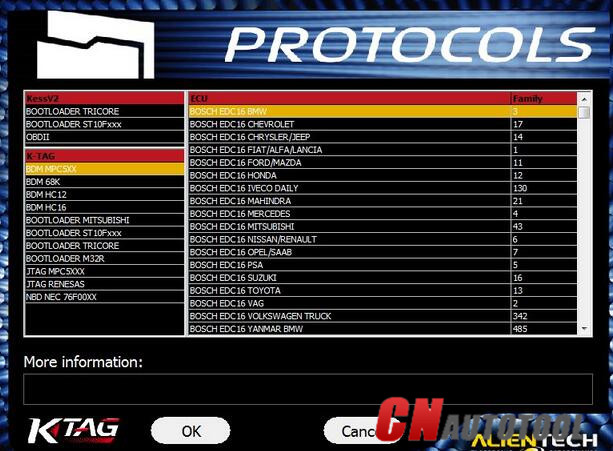

BDM MPC5XX (BOSCH EDC16/16+, BOSCH EDC7, BOSCH ME9/9+, etc )

http://www.forobd2tool.com/wp-content/uploads/2017/06/30/19-5.jpg

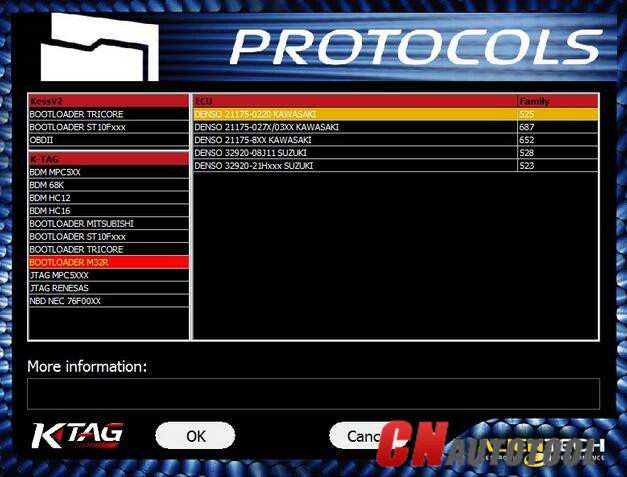

BOOTLOADER M32R (DENSO 21175, etc)

http://www.forobd2tool.com/wp-content/uploads/2017/06/30/19-6.jpg

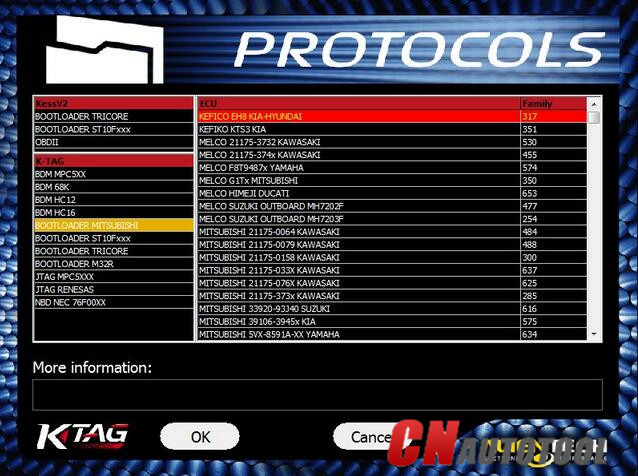

BOOTLOADER MITSUBISHI (MITSUBISHI 21175, MITSUBISHI E6T, MITSUBISHI E2T, etc)

http://www.forobd2tool.com/wp-content/uploads/2017/06/30/19-7.jpg

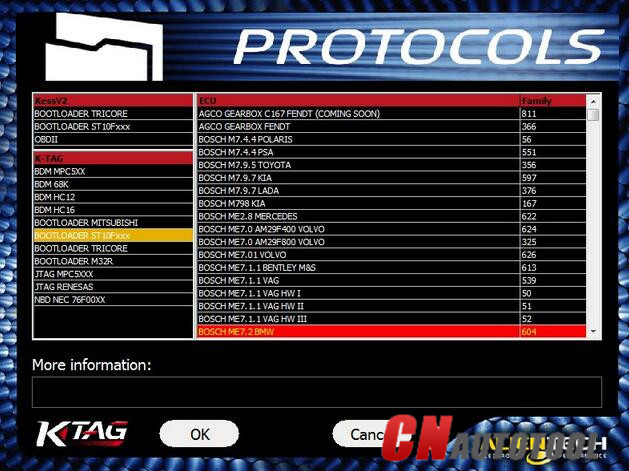

BOOTLOADER ST10FXXX (BOSCH M7.4.4, BOSCH M7.9.7, BOSCH ME7.1.1, BOSCH ME7.4.4, BOSCH ME7.4.5, BOSCH ME7.9.10, etc)

http://www.forobd2tool.com/wp-content/uploads/2017/06/30/19-8.jpg

BOOTLOADER TRICORE (BOSCH EDC17, BOSCH ME17, CONTINENTAL SID208, SIEMENS EMS2204, SIEMENS EMS3110, etc)

http://www.forobd2tool.com/wp-content/uploads/2017/06/30/19-9.jpg

JTAG MPC5XXX (CONTINENTAL CM2150E, MARELLI 8DF, DELPHI DCM3.5, etc)

http://www.forobd2tool.com/wp-content/uploads/2017/06/30/19-10.jpg

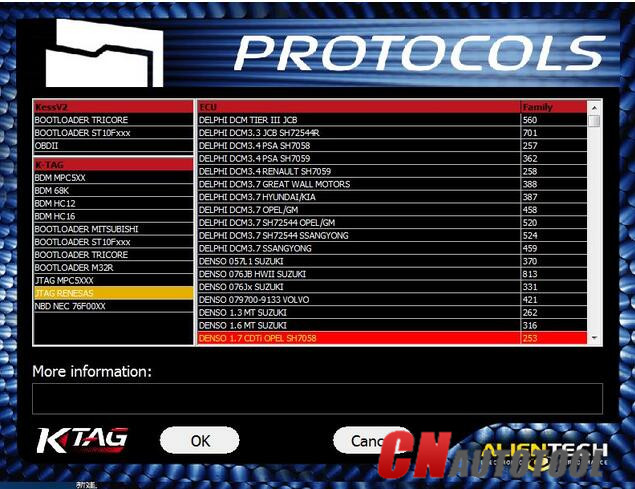

JTAG RENESAS (DELPHI DCM3.4, DELPHI DCM3.7, DENSO 32920, DENSO RA6, HITACHI A56, HITACHI MEC, etc)

http://www.forobd2tool.com/wp-content/uploads/2017/06/30/19-11.jpg

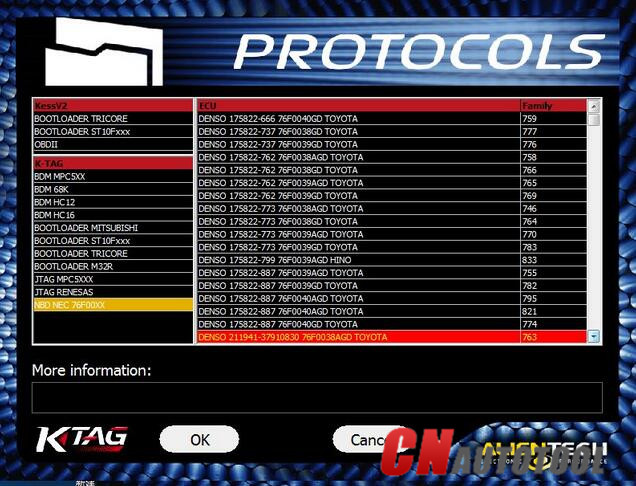

NBD NEC 76F00XX (DENSO 175822 TOYOTA, DENSO 275036 TOYOTA, etc)

http://www.forobd2tool.com/wp-content/uploads/2017/06/30/19-12.jpg

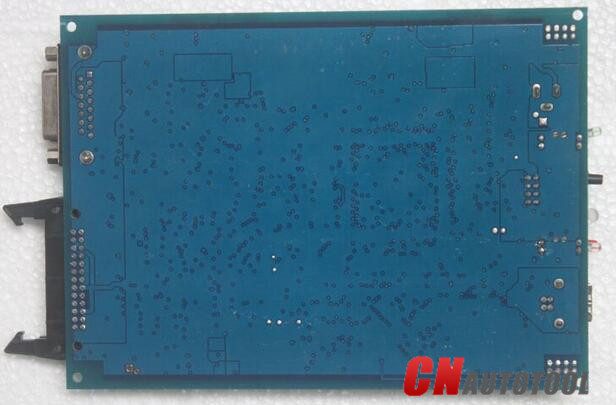

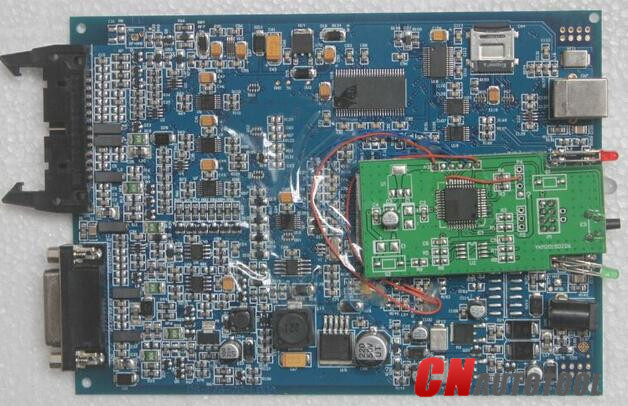

And KTAG Firmware 7.020 PCB Board for checking:
http://www.forobd2tool.com/wp-content/uploads/2017/06/30/19-13.jpg
http://www.forobd2tool.com/wp-content/uploads/2017/06/30/19-14.jpg
