Car Diagnostic Tools

Licensing Expiration Schedule

Cat ET
–Dealer Cat ET license will run January – December each year
–Customer CAT ET license expires 365 days from the date the license ORDER is placed in the Dealer Software Licensing (DSL) system

SIS DVD and SIS Network
–Dealer  SIS DVD license will run January – December each year
–Customer SIS DVD license expires 365 days from the date the license ORDER is Placed in the Dealer Software Licensing (DSL) system

9-1 9-2

Managing Licenses
– Yearly Orders of Licenses
– Caterpillar created License Orders for each Dealer by Subscription Type for Dealer
– Caterpillar Renews DEALER SITE LICENSE Orders (JERD2129, RERA0004 & NEXG5043) in October and will renew yearly
– Each Dealer will need to Renew their CUSTOMER Orders by Subscription Type for Customer Usage (JERD2125, NEXG5007, NEXG5009, RERA0003, etc.) prior to the Order Expiration Dates

Managing Licenses
– Assigning a License
– Each order contains a specific number of licenses
– A license is UNASSIGNED until an authorized DSL user ASSIGNS the license by NAME to an individual user

9-3

9-4

New Software License Order

Yearly Order of the Number of Licenses Required
Customer Subscriptions automotive scan tool Cat ET and SIS DVD
Dealer Subscriptions Olympian EST Olympian Compass USB

New Software License Order ET Caterpillar

9-5

New Software License Order – Cat ET Customer

9-6
New Software License Order – Cat ET Customer

9-7 9-8

New Software License Order Receipt

9-9

Assign a License

9-10

9-11

How to Configure Electronic Technician

How to Configure Electronic Technician to use the Communication Adapter II

In order for Electronic Technician to work with the Caterpillar Diagnostic Tool Communication Adapter II, you must change the Settings to select the Communication Adapter II as your Communication Interface Device:

Step 1 Start Caterpillar Electronic Technician

Step 2 Press the “Stop Connect” button when it appears

Step 3 Select the “Settings” menu (or the “Utilities” menu with Auto Scanner Tool ET 2001A or later)

Step 4 Choose “Preferences…”

Step 5 Select the “Communications” tab

Step 6 Change the Communication Interface Device to SIP

Step 7 “COM1” should be selected. This application firmware

only supports Serial communications.

Engine?Control?Module Recovery by GM MDI or Tech 2

This is step-by-step instruction on how to do engine control module recovery on Cadillac cars.

Modules tested successfully with the tools and guide below:
2009 Buick?Enclave
2007-2009 Cadillac CTS, SRX, STS
2009 Chevrolet Traverse
2007 GMC Acadia
2009 GMC Acadia
2007 Saturn OUTLOOK
2009 Saturn OUTLOOK

Diagnostic tool:
GM MDI module
GM Tech 2 scanner
9-0 9-1

Engine control module recovery procedure:
1. Disconnect the programming device.
2. Power down the control modules connected to the GMLAN bus by disconnecting the positive?battery?cable for 2 minutes.
3. Reconnect the positive battery cable.
4. Determine which programming device will be used to perform the recovery steps.
If using GM MDI Scan Tool, connect to the programming station or Notebook using a cable (LAN). Proceed to Step 5 and then Steps 6-8.
If using a Tech 2 proceed to Steps 6-8.
5. Reboot the programming station or Notebook. This is to make sure nothing is in memory.
OBD2 Note: Selecting Replace and Reprogram from the Select Diagnostic Tool and Process Screen is REQUIRED because some of the calibrations may be erased from the initial attempt to reprogram the module.
6. Reprogram the engine control module. Select Replace and Reprogram from the Select Diagnostic Tooland Process Screen.
7. Follow the on-screen instructions to complete the programming event.
8. Clear all DTCs using the GM Tech 2 or GDS.

GM Tech 2 Buying Guide

Received the Tech 2 Scan Tool clone today. Five days from China, not bad for free shipping. Checked it out and everything is working fine except the AC-to-12VDC power adapter (dead). No problem, because I can get one anywhere for $5. In short, that is a nice piece of equipment to have, very nice!

Aside from working beautifully with OBD2 Scanner, the tech2 is the scanner for GM OBD1 to use. with the right software (plug in chips like nintendo cartridges) it’ll do some daewoo/suzuki, GM medium duty (meaning bigger than 3500 using non automotive OBD2 standards), and other in the GM MDI Diagnostic Tool family tree too.

In addition to generic codes (P0000-P0999) It’ll do all the proprietary GM codes (P1xxx), actuators, and systems. you can also view fuel trims, emissions readyness (beyond a green LED for all OK) and It’ll talk to ALL the modules rather than just the ECM (and if you get into the $250+scanners, ABS) like BCM, SIR, entertainment, EVERYTHING on a GM. At school I used one with a 91+ cartridge on my 87 S10, so going back further is hit or miss but posible.

To adjust shift points and fuel consumptiona and Speedo, forget it.

The TECH2 can’t do any sort of modding/tuning, only upload GM flashes. At least with legitimate software. I’m sure someone has custom software to do it but there are easier ways nowadays.

Is it worth if you just want to read/clear codes on your own car once in a while, heck no. If you’re doing a lot of work on GMs or want to get a lot more in depth with your car, it’s worth the money.

No comment on China knockoff quality, I mean a working Tech 2 Scanner, Chinese made or not.

See my tech 2 scan tool. It’s working well.

(put the site here and i hope i don’t break the rule; if you don’t need it, forget it!
4-1 4-2 4-3 4-4

4-5

Piwis Tester II Fault Memory Screen Navigation

Where‘s the Piwis Tester II Fault Memory on Piwis Tester II?How to deleted fault memory?you have same question for Piwis Tester 2 fault memory pls follow www.cnautotool.com to learn more about it.

Below is Fault Memory Screen Navigation:

29-1

Fault memory in Porsche piwis tester 2 function group,If you have selected at least one control unit in another function group (A), you can access an overview of the fault memory entries (B) by selecting the function group Fault memory on Piwis Tester II. Here you can view the environmental data (D) for a fault memory after selecting an entry and pressing the <F12> (C) button. If you press the <F11> button (E) in the environmental data screen, you return to the screen with the fault memory entries (B).

You can delete the fault memory (F) and also access another function group by selecting a function group button in the menu bar (G).

Porsche Piwis Tester 2

Automotive scan tool Porsche Piwis Tester II is the latest professional tester for all Porsche, support read/clear error code, catch data stream, computer programming match, component test, maintenance information consult, components site drawing, wiring diagram.

19-1

What Piwis Tester 2 Do?
Read/clear error code, catch data stream, computer programming match, component test, maintenance information consult, components site drawing, wiring diagram

What cars does it Support?
Porsche Piwis Tester II works with the old and latest Porsche cars. For example: 911(997)(991), Boxster/Cayman, (987), Cayenne up to MY 2010, Cayenne from MY 2011 and Panamera.

Porsche Piwis Tester II Support Systems
ENGINE automatio transmission, air-conditioner, SRS, ABS, ASR, MPL, GM, Original antitheft System, KEYLESS GO system, OBDII system.

How to Update Piwis Tester II’s Software
The software is update for free in the first year, update by CD or DVD. And also provide Team Viewer remote support.

Read/clear error code, catch data stream, computer programming match, component test,maintenance information consult, components site drawing, wiring diagram.

The piwis tester ii work with the old and latest porsche car. It is equiped with the panasonic laptop and original software for the test. Porsche piwis tester II can help you diagnose and programme the most new and old kind of porsche cars. For example: 911(997), Boxster/ Cayman,(987), Cayenne up to MY 2010, Cayenne from MY 2011 and Panamera from OBDResource.

The new Panamera can only be diagnosed by using this Piwis Tester II. Based on current project planning, all earlier vehicle models will gradually be changed over to the new PIWIS Tester-II by the end of 2010. PIWIS Tester-I must be used for older models in the Porsche workshop until end of 2010.

Support for PIWIS Tester-I will no longer be available once the earlier diagnostic programs have been transferred to PIWIS Tester-II.

When the Porsche Diagnostic Tool PIWIS Tester-II is distributed, it will contain one basic piece of software. This is necessary in order to start and configure the tester.

WiFi GM MDI Multi Interface GDS Tech2Win review

GM MDI Scanner (General Motors Multiple Diagnostic Interface) with WiFi is an interface between your vehicle DLC and a PC (by wired USB, wired Ethernet, wireless Ethernet ) and TIS2web.

GM MDI scan tool can certainly test all of the GM car from 1990 to 2013( Supports 2010-2012 Australia Holden).

Are available for SPS programming on current and also future SGM vehicles.
Required for diagnostics on new SGM Global A Electrical Architecture Vehicles.
Used with TIS2Web, GM Global Diagnostics System (GDS), SPS and MDI Manager Software.
Allows for GDS diagnostic at CnAutotool.com.

GM MDI China clone Working well. Tested with GDS2 v.12.

Device works with GDS2 (Opel).
Device works with Tech2Win. (Opel, Hammer)
Device not works with SAAB via Tech2Win.

Price: USD259 + shipping cost(based on your country)

Pay via Paypal

REAL PHOTOS

4-1

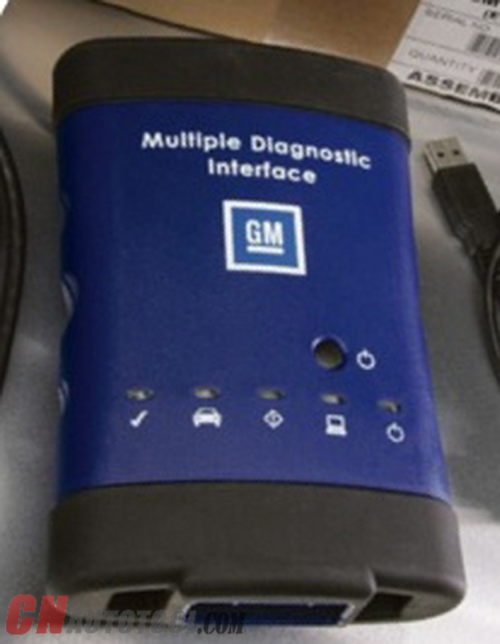

4-2
4-3

The MDI came ready to use with the software installed. It worked since I already had Tech2Win, GDS2 and GM MDI Manager installed on my laptop. It works extremely well and I have no problems with it. The product image at the time I order showed the cable keeper, A/C 12 volt adapter and multiple diagnostic interface user’s guide CD which is used to install the MDI manager software on your laptop. These items were not included. It also said it was Wifi but did not come with a wireless card but with a wireless interface instead. There are two versions of Car Diagnostic Tool GM MDI interface on China market, cheaper MDI less than US$180 with only USB connection and the other more expensive with wifi wireless connection.

The product would work excellent if you had the MDI manager software already on your laptop.

4-4 4-5 4-6

My device tested with many cars for 4 months.
Device works with GDS2 (Opel).
Device works with Tech2Win. (Opel, Hammer)

Device not works with SAAB via Tech2Win.

Tested by my own, works with Saab 9-5, 2003, 3.0
It works with tis2000 and tech2win NAO.

My MDI clone works fine with tech2win and also TIS2000 software. Used it for diags and pcm flashing with no problem (through usb port only, cause wifi is unstable for programming functions).

Added a wireless card to that one too, same flawless performance.. Only issue for me is that they all have the same serial number.. So using 2 of them in the same shop with wireless would be impossible..

compared boards from a genuine to this clone, almost identical.. multiple layer pcbs, same tracers, didn’t see any difference except the board labeling was missing on the clone.
Wifi GM  mdi good, interface works online. update mdi 100%. offline not that good  for new cars.

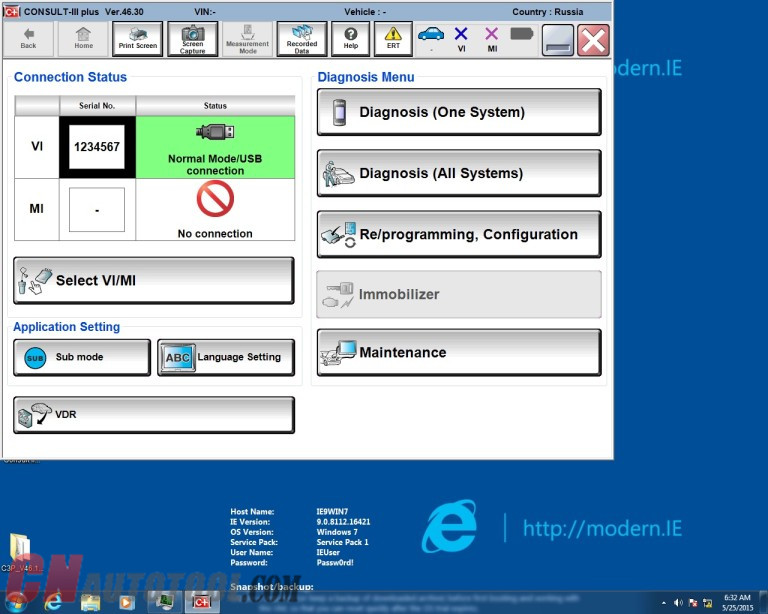

Nissan Consult III Plus Ver.46.30 works on MDI interface as well (this is not tested by me, your are on your risk).

4-7
Function:
1. Diagnostic Trouble Codes (DTCs) Available Powertrain, Body, Chassis, Diagnostic Circuit Check system.
2. Ability to capture stored DTCs, Freeze Frame, Clear DTCs, Review DTCs.
3. Data Display: ECU, Vehicle Information.
4. SnapList: System Config, Data, Inputs, Outputs, Security, more….
5. Available diagnostic data parameters from the various system ECUs. A specific predefined list of diagnostic data parameters may be available
6. Bi-directional The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.
7. Support Vehicle Type: Car, LD Trk, MPV, Incomplete Medium Duty Truck, Saturn.

www.cnautotool.com

BMW ICOM A2+B+C With V2017.09 Engineers software Plus Lenovo T410 Laptop Ready to Use

Top 4 Reasons to Get BMW ICOM A2+B+C:
1.Support Multi-language: American English, British English, German, Spanish, French, Italian, Polish, Portuguese, Turkish, Czech, Swedish, Dutch, Indian, Greek, Russian, Japanese, Korean, Thai, Simplified Chinese and Traditional Chinese
2.Hardware Version: ICOM Application-01.40.05
3. Support Vehicles: BMW Cars, BMW Motorcycle, Rolls-Royce, Mini Cooper
4.Support BMW All Series auto diagnostic tools suppliers and Programming

V2017.07 BMW ICOM Software:
Latest software version: V2017.09
Multi-language available in diagnosing, programming and TIS diagram circuit
Compatible with BMW ICOM, ICOM A2, ICOM A3.ICOM PRO+A3
Support Engineer programming

Software version:
ISTA-D 4.05.20
ISTA-P 3.61.4.002
VIN: 2017.09
Not connected 9000 days remaining

BMW ETK: 2017.09
BMW KSD: 09.2017Multilanguage
BMW FSC Navigation Code Generator
BMWAiCoder for BMW Coding
With free BMW Engineer Software (INPA, NCS, WinKFP, E-Sys 3.27.1, Psdzdata 59.0), BMW FSC code generator and BMW AiCoder

BMW ICOM A2+B+C Connection:

4-1

BMW ICOM A2+B+C Functions:
A2 – OBD diagnostic supporting MOST, D-CAN and K-CAN protocols
B – diagnostic via most bus, and have connection to A-interface via USB connection.
C – 20-pin cable for old models.

BMW ICOM A2+B+C Special Features Compared with BMW ICOM:
The modified BMW ICOM A2 for vehicles with OBD softeware access receives a significantly more powerful processor and more storage capacity.Robust aluminium case will help to avoid damage when using in harsh environments.

To protect the most connector, the BMW ICOM B for vehicles with optical most access will be equipped with a soft cover made of rubber instead of the former plastic cap.
The BMW ICOM C for old series with a diagnostics socket will be additionally equipped with an approx. 20 cm long cable, which facilitates the connection of the BMW ICOM A2 and makes storage in the engine compartment easier.

Lenovo T410:
I5 CPU 2.53GHz 4GB Memory WIFI, DVDRW Second Hand Laptop for BMW ICOM/MB SD C4
Condition: Used
An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.
Brand: Lenovo
Type: Laptop/Notebook
Screen Size: 14.0
Memory (RAM): Intel(R)Core(TM)I5 CPU
Primary Drive: DVD+/-RW Processor Speed:  2.53GHz
Processor Configuration:  Dual Core
Memory: 4GB

Package List:
1pc x BMW ICOM A2 Interface
1pc x BMW ICOM B Most
1pc x BMW 20pin Cable
1pc x USB Cable
1pc x OBD2 Cable
1pc x LAN Cable
1pc x Software HDD
1pc x Lenovo T410 Laptop (Used)

CAT ET III Wifi Wireless Caterpillar 317-7485 Diagnostic Adapter

CAT ET III Wifi is the new CAT ET III adapter with wifi functions, allow you to properly communicate with a CAT engine on dual datalinks. Software Version is 2015A.

CAT ET III Wifi Caterpillar Scanner Features:

Display graph and log status parameters.
Retrieve prognostic data including histograms, engine totals for fuel used and miles traveled.
View active diagnostics and clear logged diagnostics. View events where irregularities have occurred and have been logged by the ECM.
Perform calibrations to enhance performance of the ECM.
Customize the ECM with application-specific settings.
Over 100 custom Diagnostic, Information and Service features including:
2D and 3D Histogram plotting capability (engine software support required).
Custom Status screen groups
Snapshots (Download and display snapshot data recorded by the ECM)
Configuration Aid that allows upload/download of same configuration to multiple control modules
Customised Service Tool Options
Customized service tool name
Customized graphics for the splash screen and icons
Customized installation
Aftermarket differentiation, the tool for one customer does not work on the product of another customer.
Licensing options for customer management
Flash programming of the ECM(s)
Training demonstration allows familiarity with the toola s primary functions without connecting to ECM(s)
Major operating systems support (Microsoft Windows 95, 98, NT 4.0, 2000, ME, & XP)
Perform customized diagnostic tests to identify harness problems, cylinder or component failures (Automatic Cylinder Cutout with cylinder to cylinder fueling comparison)

CAT ET 2015A Software:

Designed to run with Microsoft Windows 95, 98, 2000, NT and XP

Ready to use, just install software program onto PC using provided CD

The PC-based service tools from Auto Testing Tools Caterpillar provide the capability to access Electronic Control Modules (ECMs) from a personal computer. Many job-critical tasks can be performed with an electronic service tool.

The user can display the status of a group of parameters (temperatures, pressures, etc.) simultaneously, view active and clear logged diagnostics, display the current configuration of an ECM and much more.

The service tool works with a communication adapter to allow connection to an ECM. A graphical interface makes this software quick to learn and easy to use. A separate pull-down menu for each function enhances the a??ease of use.a?? The version and identification of the ECM is automatically retrieved and is displayed on a summary screen when the program is started.

Diagnostic tests and calibrations can also be performed.
Caterpillar PC-based tools enable service technicians to reprogram ECMs, reconfigure control system parameters, fine tune performance or diagnose the root cause of a failure the first time. These powerful tools allow service personnel to display and analyze vital performance and health information from any system quickly and accurately.

The service tool communicates with any system using ATA (J1708), J1939 or the Caterpillar proprietary data link networks. The service tools provide information and features needed to help a technician diagnose problems and perform repairs and to customize and personalize the operation of a product.

By allowing customers to design flexibility and configurability into a product, Caterpillar service tools stretch beyond the capabilities of preprogrammed ECMs or onboard display systems.

 CAT ET III Wifi Package including:

1pc x CAT Comm Adapter III
1pc x CD for installing the drivers
1pc x USB Cable
1pc x J1939/J1708 Cable
1pc x 6+9pin Cable
1pc x The main line
1pc x WIFI adapter
1pc x Dell D630 Laptop (Optional , Second Hand, 2G RAM T7500CPU Laptop)

15-1

Autel MaxiSys Pro Scan Tool

3-1

 Autel MaxiSys Pro Scan Tool at CnAutotool.com
The MaxiSYS Pro has been designed to be the go-to tool for the professional technician who performs J-2534 reprogramming on a regular basis. Xtool Diagnostic Tools MaxiSYS Pro utilizes an ultra-powerful A9 quad-core, 1.40GHz processor that offers a 50% increase in speed versus competing products, a 9.7” LED screen with a 1,024 x 768 resolution capacitive touch screen, a 32 GB Solid State hard drive, the revolutionary multitasking Android Operating System and comprehensive OE-level vehicle coverage. The MaxiSYS Pro includes the J-2534 reprogramming box and special MaxiSYS Pro software needed for shops and technicians who demand a comprehensive diagnostic system capable of completing even the most complicated and demanding tasks. The MaxiSYS Pro comes with all of necessary adaptors for 1996 & newer vehicles, software for Domestic, Asian, & European vehicles (J-2534 manufacturer updates sold separately) and cables needed to get the job done, as well as one year of FREE updates.

Product Features & Functions
· Extensive vehicle coverage for more than 40 US, Asian and European vehicle makes
· Complete function capability for codes, live data, actuation tests, adaptations, coding, and even ECU programming
· Extraordinarily powerful Cortex-A9 quad-core processor
· 9.7 inch 1,024×768 LED-backlit glossy widescreen Multi Touch display with IPS technology
· Built-in 5-megapixel rear camera with autofocus; Virtual on-screen keyboard· Wi Fi wireless to access your favorite web resources & automatically update new software
· Unique shop tough ergonomic design features strong rubber protection and housing
· Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
· USB, audio, and auxiliary ports make it easy to connect accessories
· Internal Reliable and fast 32GB Solid State Drive for better performance
· The VCI connects wirelessly to the main unit with ultra-range Bluetooth
· Open source Android Operating System for fast boot-up and multitasking
· Easy and intuitive navigation makes finding what you need simple and fast
· Displays live data in text, graph and analog for easy data review and analysis
· Configure live data display options, set alarms, record, and playback data frames with one touch
· Records and playbacks live data to pinpoint troubles of sensors and components
· Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
· Remote technical support for convenient demonstration, training and increased customer satisfaction
· Intelligent memory of vehicles for easy and quick diagnosis of tested vehicles
· Prints out recorded data anytime and anywhere with Wi-Fi technology

AUTEL MaxiSYS Pro MS908P Packing List:
Maxisys Pro
Quick reference guide
Main cable
GM/Daewoo-12 adaptor
PSA-2 adaptor
Fiat-3 adaptor
Audi-2+2 adaptor
BMW-20 adaptor
Benz-38 adaptor
Kia-20 adaptor
Mitsubishi/Hyundai-12+16 adaptor
Nissan-14 adaptor
Honda-3 adaptor
Carry case
USB Cable
User’s Manual
Cigarette Lighter
Compact Disc (CD)
AC/DC External Power Adapter
Wireless Diagnostic Interface
Capacitive Stylus Pen
Soft Cloth
Packing List
Chrysler-16
Benz-14
Mini USB Cable
Lighter Fuse

AUTEL MaxiSYS Pro MS908P Package List Picture:
3-2
